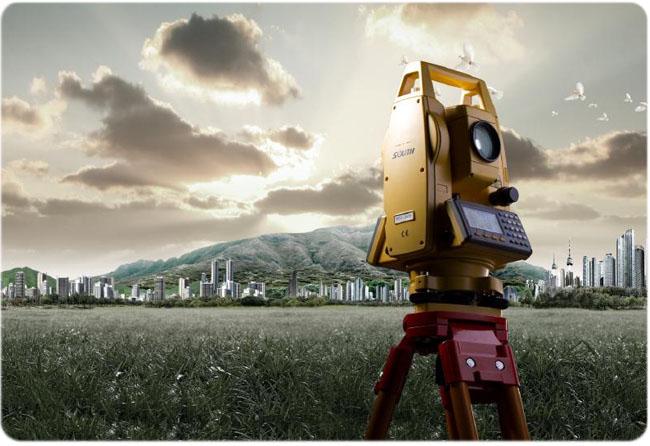

Total Station South NTS 362R

South Total Station NTS-362R Reflectorless Total Station

South NTS-362R Reflectorless Total Station

Quick Details
 Place of Origin:China (Mainland)
 Brand Name:SOUTH
 Model Number:NTS-362R
 Reflectorless:300m
 With single Prism:5km
 Measuring method:absolute encode
 Accuracy:2mm+2ppm.D
 measuring time:Fine mode:1.2S;Tracking mode:0.5s

Specifications
Absolute Encoding Disk;
Six-line large LCD;
Dual Axis Compensation;
SD card Function and USB interface;
Different Main Board
NTS-362R
Telescope:
Erect
Magnification
30×
Effective aperture
Telescope:45mm(EDM:50mm)
Resolving power
3″
Field of view
1°30′
Minimum focus
1m
Tube length
154mm
Angle Measurement
Measuring method
absolute encode
Dia of circle(vertical, horizontal)
79mm
Minimum reading
1″     5″Selectable
Detection method
Horizontal: Dual Vertical: Dual
Accuracy
2″
Distance Measurement:
Max. Range
single prism
5km
Reflectorless
300m(object in shade,or sky overcast)
Displaly
Max:99999999.9999m  Min:0.1mm
Unit
m/ft
Accuracy
Reflectorless
Fine
±(5mm+2ppm·D)
Tracking
±(10mm+2ppm·D)
Reflector
Fine
±(2mm+2ppm·D)
Tracking
±(5mm+2ppm·D)
IR sheet
±(5mm+2ppm·D)
measuring time
reflectorless
Fine mode:<1.2S;Tracking mode:<0.5s
reflector
Fine mode:<1.2S;Tracking mode:<0.5s;IR sheet mode:<1.2S
Atmospheric correction
Auto correction ,manual input
Atmosphericrefraction and earth curvature correction
Auto correction ,manual input
prism constant correction
Auto correction ,manual input
Vial
Plate vial
30″/ 2mm
Circular vial
10′/2mm
Auto Vertical Compensator
Type
Dual axis Liquid-electric
Compensation range
±3′
Accuracy
3″
Optical Plumment
Erect
Magnification
Focusing range
0.5m~∝
Field of view
5″
On-board Battery
type
Ni-H ,Rechargeable
Voltage
DC 6V
Continuous operation time
8 hrs
Others
Display
LCD, 6 lines ,digital
Data Communication
RS-232C,USB,SD
Operating temperature
-20°~+45ÂșC
Dimension
160×150×330mm,5.2kg
