PCE-322A Sound Level Meter
Class 2 decibel (dB) meter with data-logging functionality / Measuring range: 30 ... 130 dB / Memory stores up to 32,700 readings / USB port / Microsoft Excel compatible / Analog output

PCE-322A is a handheld, portable, professional class 2 sound level meter or decibel (dB) meter with built-in data-logging or data-recording functionality. Thus, PCE-322A is an ideal real-time noise measuring device as well as a noise measuring device for long-term noise exposure monitoring over time. A mini tripod is included in the delivery contents, as is a wind noise suppressor. The recorded decibel readings help users determine if and what protective measures need to be taken to ensure overall health, safety and productivity in industrial, commercial, occupational, educational and residential environments. The sound level meter can also be used to evaluate acoustics for audio installations.

The sound level meter can be connected to a PC via the USB port. This allows the recorded decibel readings to be transferred to a PC for detailed analysis using Microsoft Excel or the included downloadable proprietary software. The sound level meter also features an millivolt analog output for connecting to a frequency analyzer or X-Y shaft recorder.
IEC 61672-1 Class II sound level meter
- USB port for data transfer
- Memory stores up to 32,700 readings
- Fast and slow time weighting
- A and C frequency weightings
- Max, min, hold and alarm functions
- Date- and time-stamped measurements
- Analog millivolt output
- Heavy-duty ABS plastic enclosure
- Large, easy-to-read, 4-digit LCD screen
- Power-saving automatic shutoff > 15 min. inactivity
- Battery allows approx. 30 hours continuous use
- ISO calibration available as an option - see accessories for details

Noise levels     Low 30 ... 80 dB
Medium 50 ... 100 dB
High 80 ... 130 dB
Auto 30 ... 130 dB
Dynamic range     50 dB
Display     4-digit LCD
Resolution     0.1 dB
Accuracy     ±1.4 dB
Sampling rate     2 x per second
Frequency     31.5 Hz ... 8 kHz
Storage capacity     32,700 readings
Frequency weighting     A and C
Time weighting     Fast (125 ms)
Slow (1 sec.)
Microphone type     Electret condenser
Functions     MIN, MAX, HOLD, ALARM
Analog output     AC/DC millivolt
Headphone
Data interface     USB port
Automatic shutdown     After 15 minutes inactivity
Operating conditions     0 ... +40 °C / +32 ... +104 °F, < 90 % RH
Storage conditions     -10 ... +60 °C / +14 ... +140 °F, 10 ... 75 % RH
Power supply     9 V block battery (for approx. 30 h continuous operation)
AC power
Dimensions     280 x 95 x 45 mm / 11.02 x 3.74 x 1.77"
Weight     Approx. 350 g / 0.78 lb
Standards     IEC 61672-1 Class II

Please see user manual for complete technical specifications.

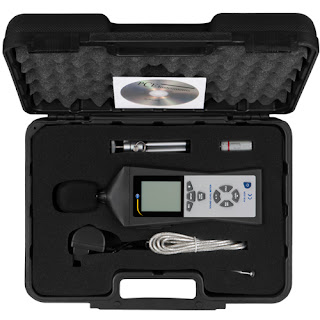

1 x PCE-322A sound level meter
1 x wind noise suppressor
1 x USB cable
1 x mini tripod
1 x calibration screwdriver
1 x battery
1 x power adapter
1 x carrying case
1 x user manual
