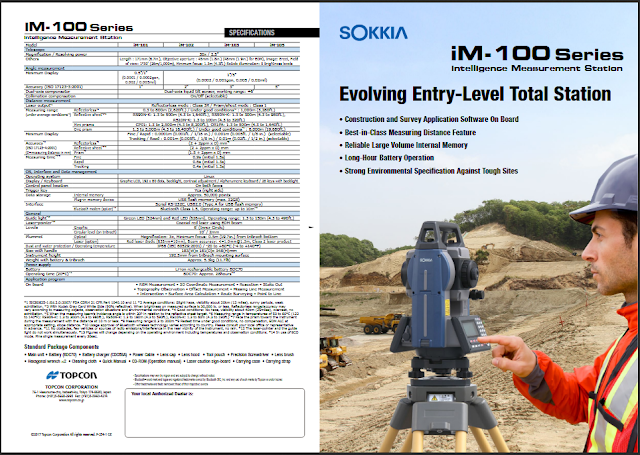

Sokkia iM-103 3” Single Display Total Station

Combining ease of use, reliability, and a rugged design, each iM (Intelligent Measurement) total station features a fast, powerful EDM. The total station measures 5,000 meters to standard prisms (6,000 meters under good conditions) and up to 800 meters in reflectorless mode. Dual-axis compensation provides stable measurements even on challenging terrain. The compensator automatically corrects vertical and horizontal angles to ensure accurate instrument setup and measurements. Bluetooth® wireless capability delivers data instantly to Bluetooth-equipped controllers with no external antenna required. Each total station features a built-in laser plummet, offers 50,000 points of internal memory, accommodates up to a 32GB USB flash drive, and boasts up to 28 hours of battery life. Waterproof IP66 rating.

Telescope: Length, 171mm; Objective Aperture, 45mm (EDM 48mm); Magnification, 30x; Image, erect; Field of View, 1°30’; Resolving Power, 2.5”; Minimum Focus, 1.3m (4.3’). Distance Measurement: Range: Non-Prism Mode, 800m (2,624’); One AP Prism, 5,000m (16,400’) or 6,000m (19,685’) under good conditions. Angle Measurement: Display Resolution, 1”/5”; Dual-Axis Compensator, Dual-axis liquid tilt sensor, working range: ±6’ (±111mgon). Data Storage: Internal Memory, Approximately 50,000 points; Plug-In Memory Device, USB flash memory (maximum 32GB). Display: Graphic LCD 192 x 80 dots with backlight. Battery Life: Up to 28 hours. Operating Temperature: -20°C to +60°C. Dimensions: 13.7”H x 7.2”W x 6.9”D. Weight: 11.7 lbs.
